What are power connectors?
Power connectors allow electronic devices to connect to available power outlets. Power cables can carry either Alternating Current (AC) or Direct Current (DC). An example of AC power would be power that is provided by a standard wall outlet in a home or office. An example of DC power would be power that is provided by a battery. There are several different types of connectors and interfaces that are used all over the world. The power connectors shown here are some of the more common connectors used in North America.Select the power connector that you want to learn more about:
The NEMA 5-15-P is normally referenced as a "3-prong grounded plug" which plugs into a standard 110 VAC wall outlet. NEMA is an acronym that stands for the National Electrical Manucturers Association, an industry group that sets standards for use in electrical products. The connector has two flat parallel blades, with a round ground pin located between and above them. The female mating outlet for the 5-15-P is called a 5-15-R (R for "receptacle").
Shop Popular NEMA 5-15-P Products View All
#27909 | C2G
Great for confined areas, use this right-angled power cord for your PC, monitor, printer, scanner, etc.
$7.99
#03134 | C2G
Replacement power cord for PC, monitor, printer, scanner, etc.
$9.99
#14719 | C2G
Replacement power cord for PC, monitor, printer, scanner, etc.
$10.99
#03130 | C2G
Replacement power cord for PC, monitor, printer, scanner, etc.
$6.99
#03137 | C2G
Extend your power cord AND keep your UPS and surge outlets free!
$4.99
#03129 | C2G
Replacement power cord for PC, monitor, printer, scanner, etc.
$4.99
#10342 | C2G
Power a network device in a data center or network wiring closet
#09482 | C2G
Replacement power cord for PC, monitor, printer, scanner, etc.
$8.99
#24240 | C2G
Replacement power cord for PC, monitor, printer, scanner, etc.
$3.99
NEMA 5-15-P Male Iso
NEMA 5-15-P Male Front
NEMA 5-15-P Male Top
NEMA 5-15-P Female Iso
NEMA 5-15-P Female Front
NEMA 5-15-P Female Top
NEMA 1-15-P
The NEMA 1-15-P is normally referenced as a 2-prong plug that fits into a standard 110 VAC wall outlet. It has two flat blades, just like the NEMA 5-15 plug, but has no ground pin. The female mating outlet for the 1-15-P is called a 1-15-R (R for "receptacle"). Most current versions of this plug have one blade slightly wider than the other.
NEMA 1-15-P Male Iso

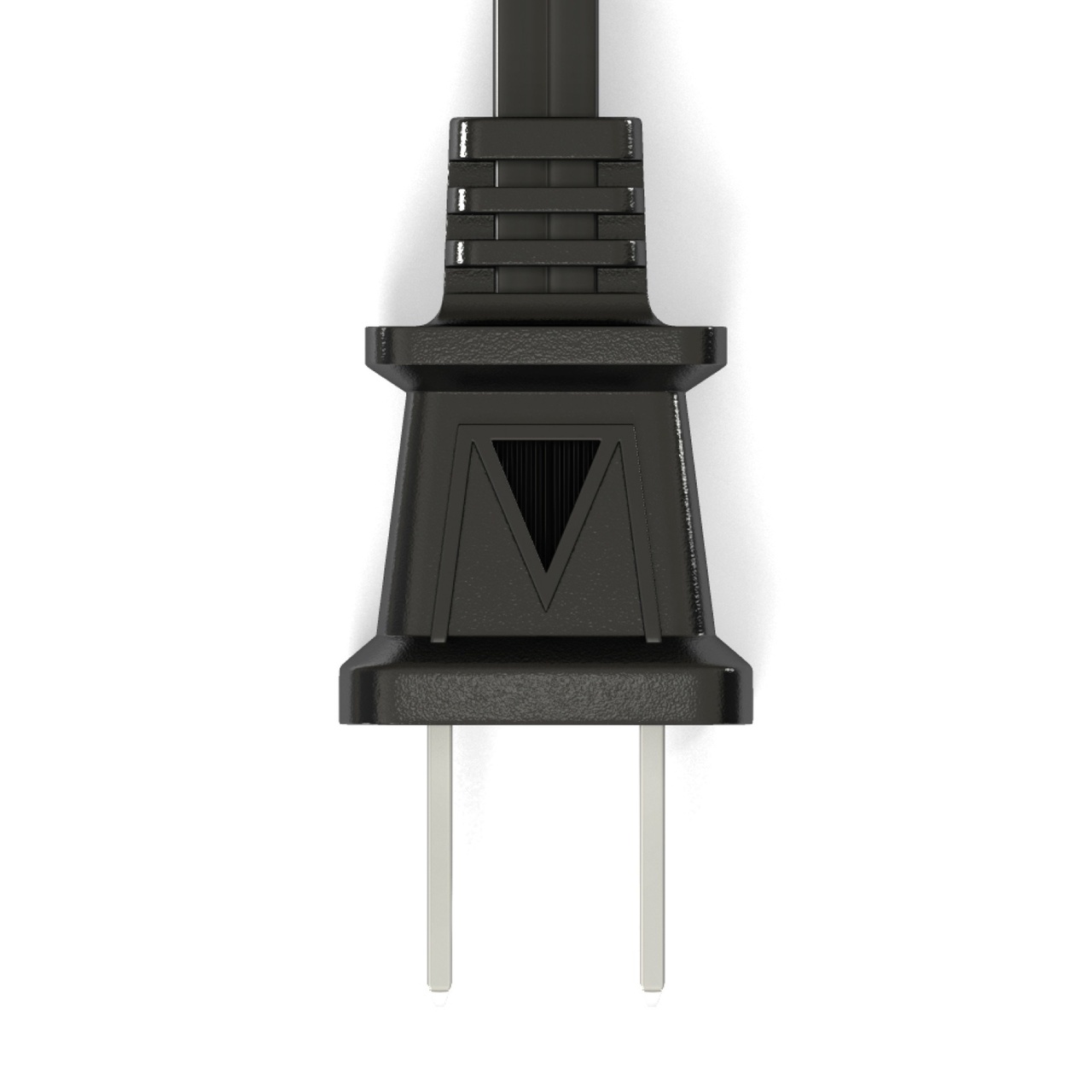

NEMA 1-15-P Male Front
NEMA 1-15-P Male Top
The IEC 320 C13/C14 connectors are based on standards created by the International Electrotechnical Commission, an international standards body. The "320" refers to the number of the specification that describes power connectors. The official text of the standard is actually numbered 60320, but common vernacular usage shortens it to 320. The C13 line socket is very common in the PC and AV industry. The mating connector for the C13 socket is the C14 plug, which is often mounted into a recessed panel or chassis on computer power supplies or power transformers.
Shop Popular IEC 320 C13/C14 Products View All
#17559 | C2G
Quickly identify power cords in high density data environment
$26.99
#27909 | C2G
Great for confined areas, use this right-angled power cord for your PC, monitor, printer, scanner, etc.
$7.99
#03143 | C2G
Extend the length of your power cord for more flexibility
$6.99
#17510 | C2G
Quickly identify power cords in high density data environment
$9.35
$11.99
#03134 | C2G
Replacement power cord for PC, monitor, printer, scanner, etc.
$9.99
#29933 | C2G
Extend the length of your current power cable for monitors, scanners, printers, and other devices that use a 3-pin shroud power connector
$9.99
#14719 | C2G
Replacement power cord for PC, monitor, printer, scanner, etc.
$10.99
#03141 | C2G
Extend the length of your power cord for more flexibility
$4.99
#03130 | C2G
Replacement power cord for PC, monitor, printer, scanner, etc.
$6.99
IEC 320 C13/C14 Male Iso

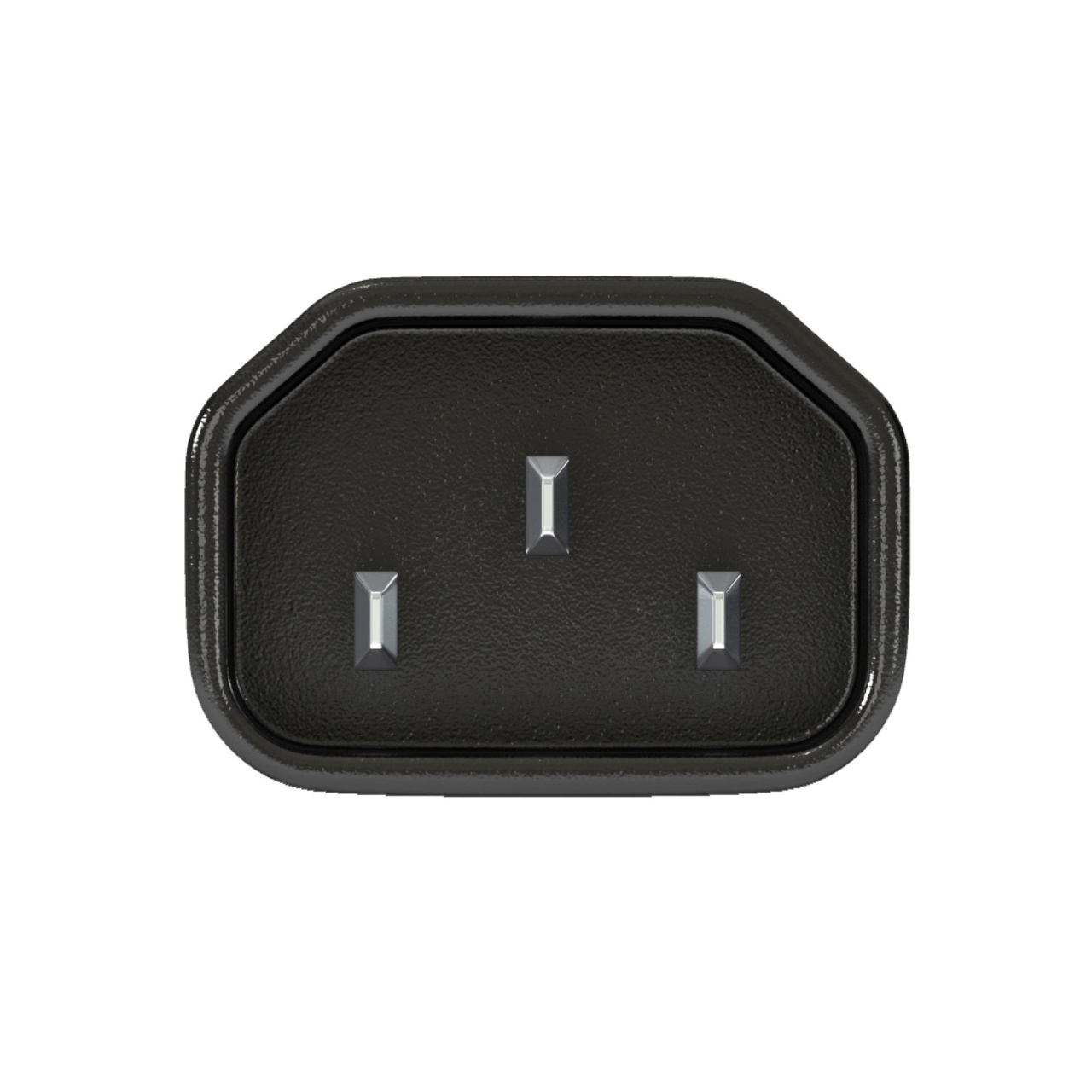

IEC 320 C13/C14 Male Front
IEC 320 C13/C14 Male Top

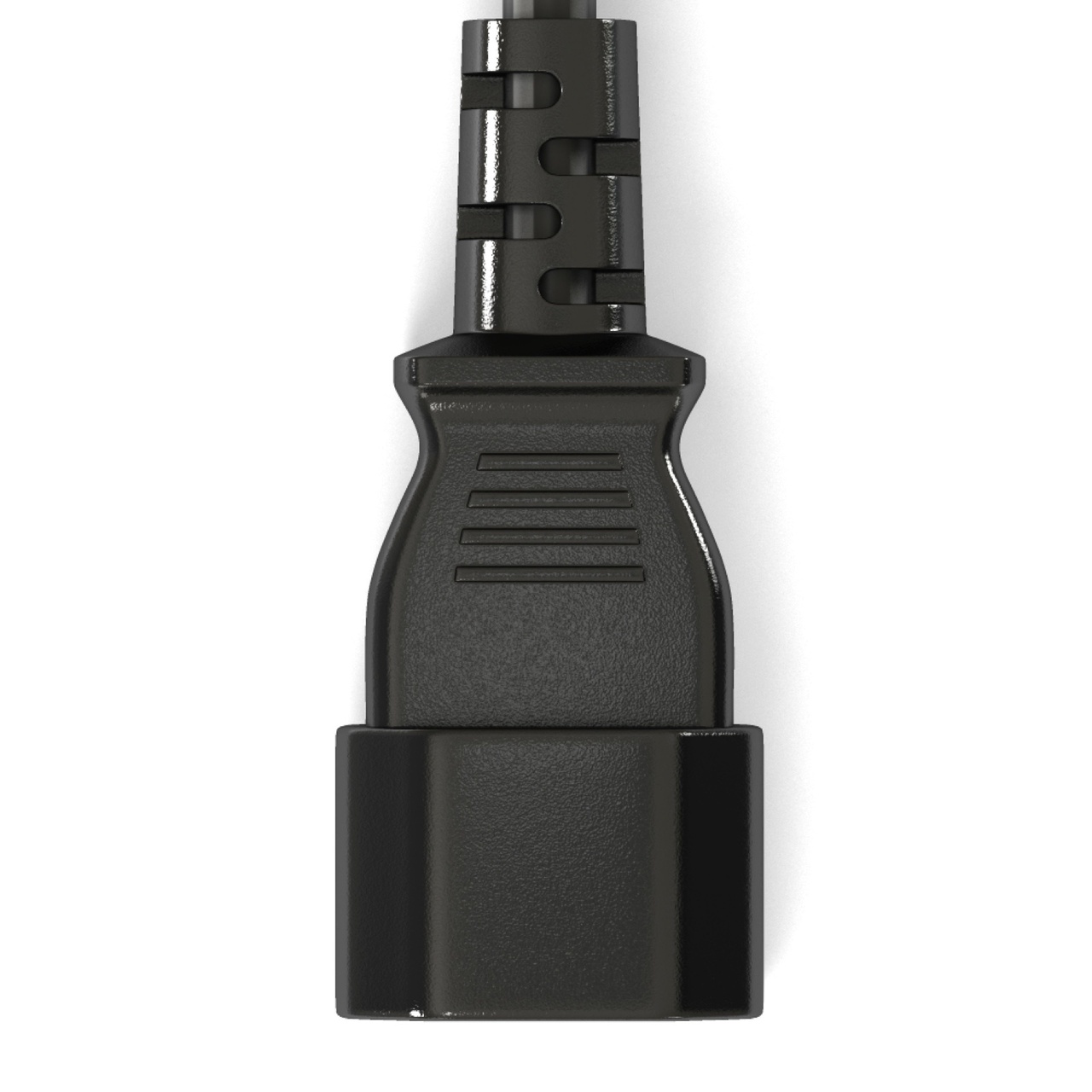

IEC 320 C13/C14 Female Iso
IEC 320 C13/C14 Female Front
IEC 320 C13/C14 Female Top
A polarized power socket often found on the power supplies used by notebook computers. The C5 connector has three round prongs arranged in a triangular fashion. One common slang term for this plug is "Mickey Mouse™ ears connector", because the shape resembles the silhouette of Disney's cartoon character.
IEC 320 C5 Female Iso
IEC 320 C5 Female Front
IEC 320 C5 Female Top
A polarized version of the C7 socket. The polarization of this connector is maintained by the squarish shape of the overmold on the one end of the socket. This design ensures that the neutral side of the device is always connected to the neutral wire of an AC circuit (which is normally shorted to ground in a 2-wire outlet).
IEC 320 C7 Polarized Female Iso

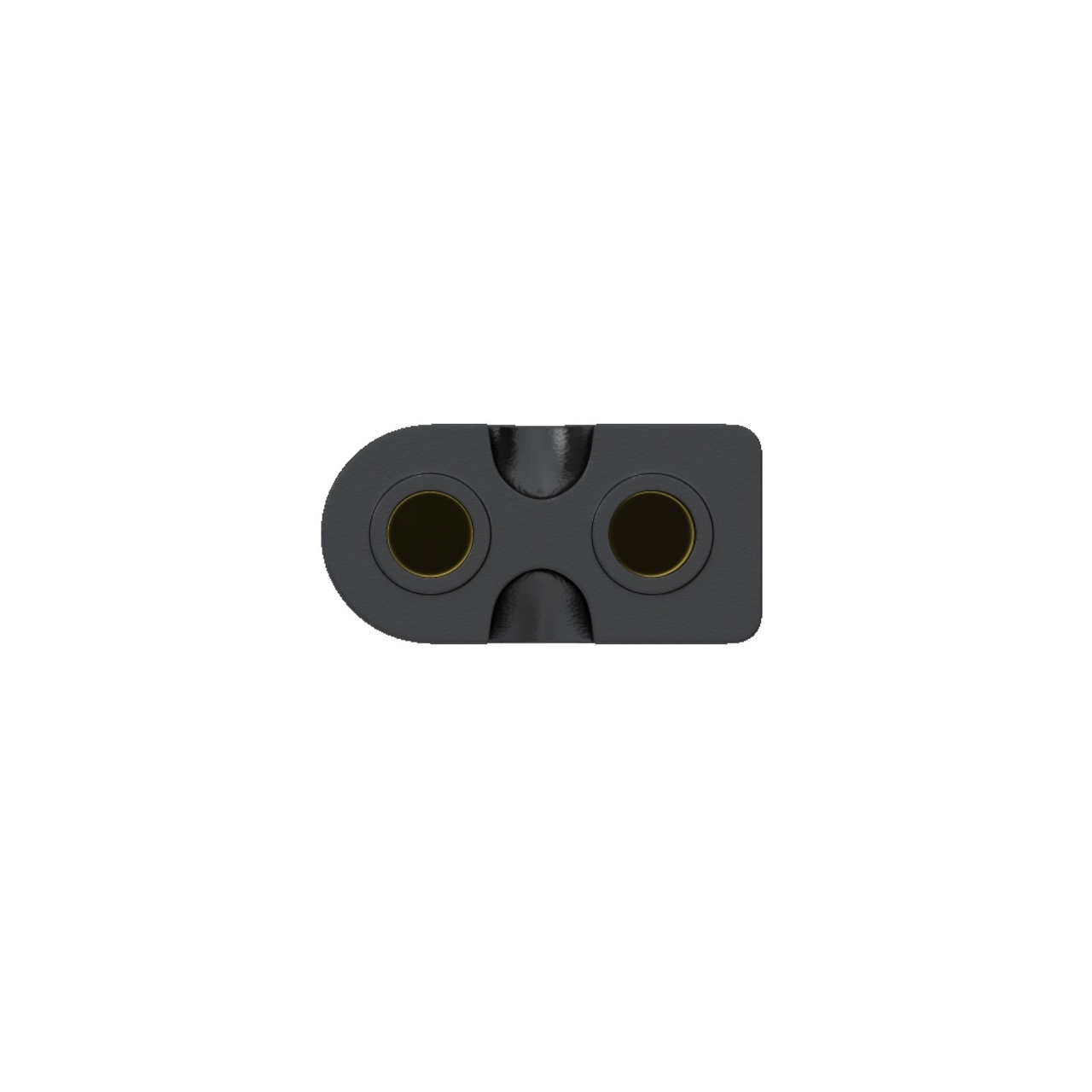

IEC 320 C7 Polarized Female Front

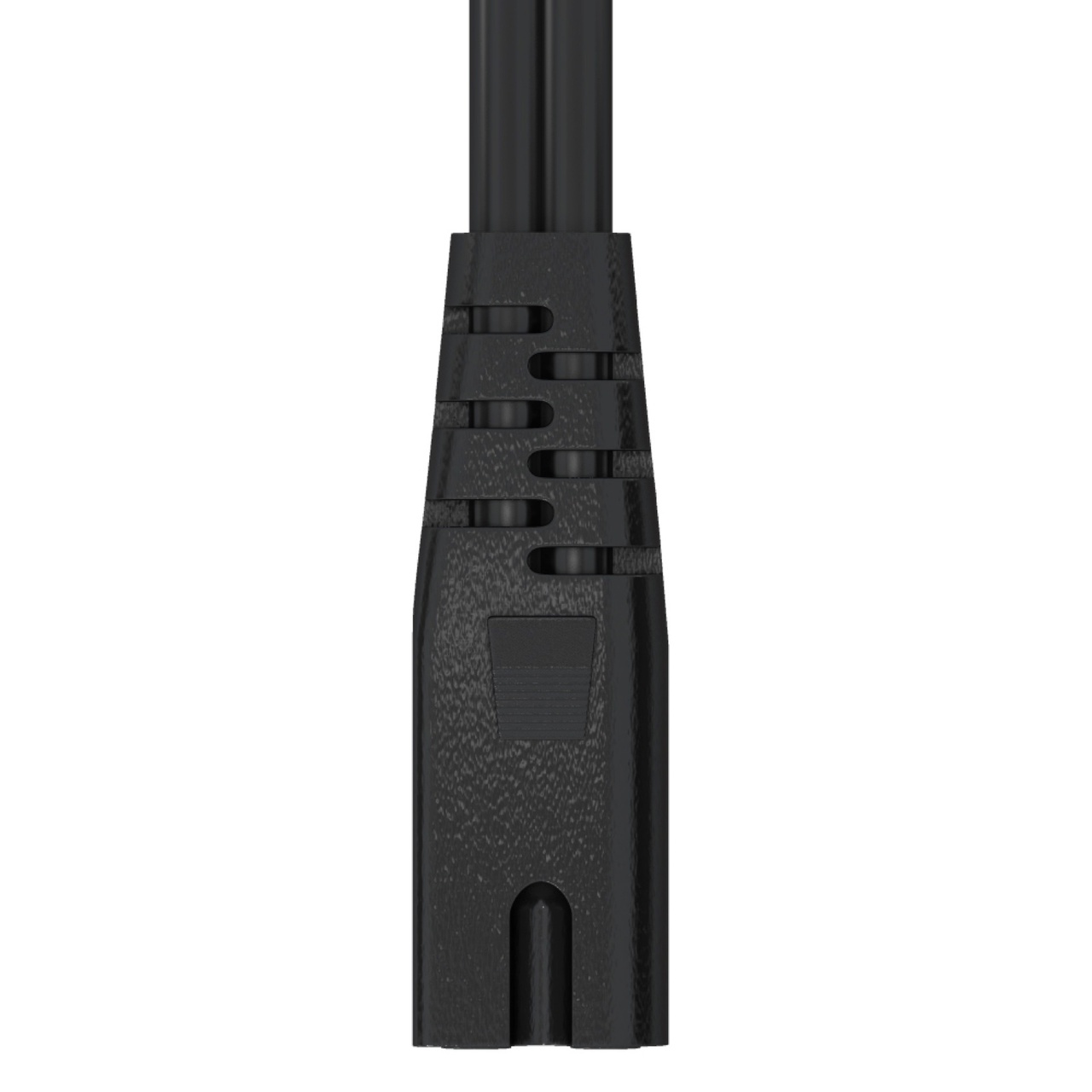

IEC 320 C7 Polarized Female Top
A plug designed for use primarily in Europe, the CEE 7/7 plug has a round shape with two rounded pins and a socket that accepts the grounding pin from a "Type F" European wall outlet. CEE is actually an abbreviation for the International Commission on Rules for the Approval of Electrical Equipment, a European standards body.
CEE 7/7 plug
